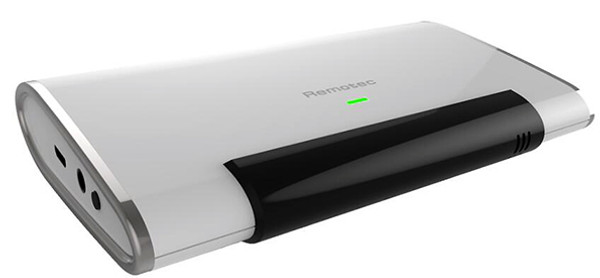

REMOTEC Z-Wave A/C Controller

Remotec
$129.00
Current Stock:
1
SKU:
ZXT600

Quick Overview

ZXT-600 is a Z-Wave plus compliant Z-Wave-to-IR Bridge to control split air conditioner by receiving Z-Wave commands and translating them to Infrared commands. With its comprehensive built-In and cloud-stored IR database (library). ZXT-600 can control different brands and models of air conditioners worldwide. ZXT-600 is a security enabled Z-Wave plus device. A security Enabled Z-Wave Plus Controller must be used in order to fully utilize the product.

  • Control your air-conditioner remotely using a Z-Wave Home Controller
  • Works with all types of AC IR interface
  • Built in temperature sensor informs you of current room temperature
  • USB powered, 5V DC Jack or 1 year battery life on 2 x AA batteries

Product Details

The Z-Wave A/C Controller is a smart Z-Wave controller which allows you to remotely control your air-conditioner using a compatible Z-Wave controller. It works with any Z-Wave compliant gateway or controller by translating Z-Wave Thermostat Commands to AC IR control code. User can select the IR code from the built‐in code library by using Z-Wave Configuration Commands according to the parameter table,  or use the learning function through the gateway. The Z-Wave A/C Controller also has a built‐in temperature sensor which allows your gateway or controller to get the current room temperature.

The Z-Wave A/C Controller can be configured as either a “Frequently Listening Routing Slaves” (FLiRS) or an “Always Listening” node before including it to your gateway. The FLiRS node type is for battery operated applications and it will enter sleep mode frequently in order to conserve battery power. The Always Listening node type is for areas where a fast response is required. It works with a 5V DC power source. Always Listening node can act as a repeater, which will re‐transmit the RF signal from the other Z-Wave devices in your network to ensure that the signal reaches its intended destination by routing the signal around obstacles and radio dead spots.

Technical Specifications

RF Protocol
Z‐Wave
RF Frequency
921.42Mhz ‐ AU/NZ  approved RF for Z‐wave
Z‐Wave device type
Frequently listening, routing slave
Power
USB powered or 1 year battery life on 2 x AA batteries
Operation Range
Up to 40m indoors with no obstacles
Application
Indoor use only
Operation temperature
-10 ~ 40 °C
Storage temperature
‐10 ~ 70 °C, humidity 5~95% RH(max)
Weight
130g
Housing
ABS
